Stand Alone Air Purifiers

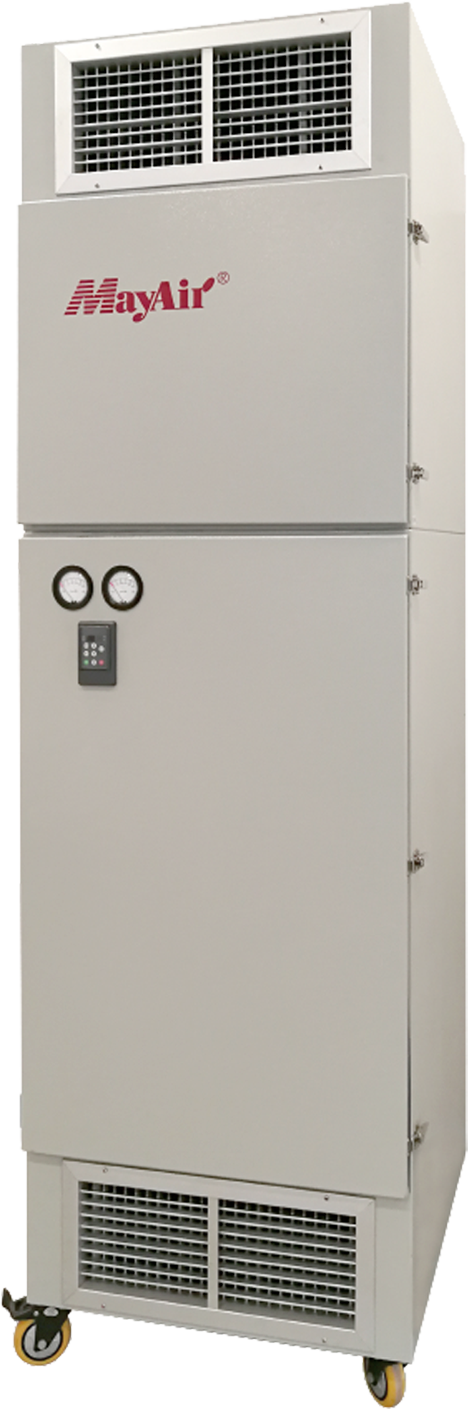

Indoor Recirculation Unit (IRU)
Indoor Recirculation Unit (IRU) is designed to filter the air in the environment in order to maintain at a lower corrosive gas concentration level by controlling the contamination level using various Filters including HEPA and Chemical Filters and personnel in the space from AMC. Suitable for Data Centers, Control Rooms, Semi Conductor and Pharma industry
Positive Pressurization Unit (IPU)
Indoor Pressurization Unit (IPU) design to provide pressurized clean air in an environment. Air Purification with Positive Pressurization keeps the Contamination away it is the recommended Strategy recommended by TIA-942 against Contamination Control in Data Center and other critical environments. IPU System is also equipped with various Filters including HEPA and Chemical Filters.
Specifications
Both models comes with fan motor overload, overheating, short circuit and phase shortage protection. Units are also equipped with Manual and auto mode for fan. Auto mode with auto shut down function, can be connected to signal input from combustible and poisonous gas alarm. Also have Dry contact output for running, fault alarm and fire signal.
Item | Desciption |
---|---|
Model | 1000V |
Air Flow | 500/1000CFM |
Dimension | 724L x 720W x 2280H mm |
Housing material | Paint coated Aluminum |
Motor | 0.75/1.5kW |
Motor IP grade | IP55 |
Pressure gauge | 2 Dwyer pressure gauge |
Pre-filter | G4, 287x592x46mm |
Chemical filter 1 | MM12-ABS-HS-PM360 (4pcs) |
Chemical filter 2 | MM12-ABS-HS-PM108 (4pcs) |
Final filter | F8, 592x592x127mm |
Chemical media | PM360 + PM108 |
Media weight | 90kg |

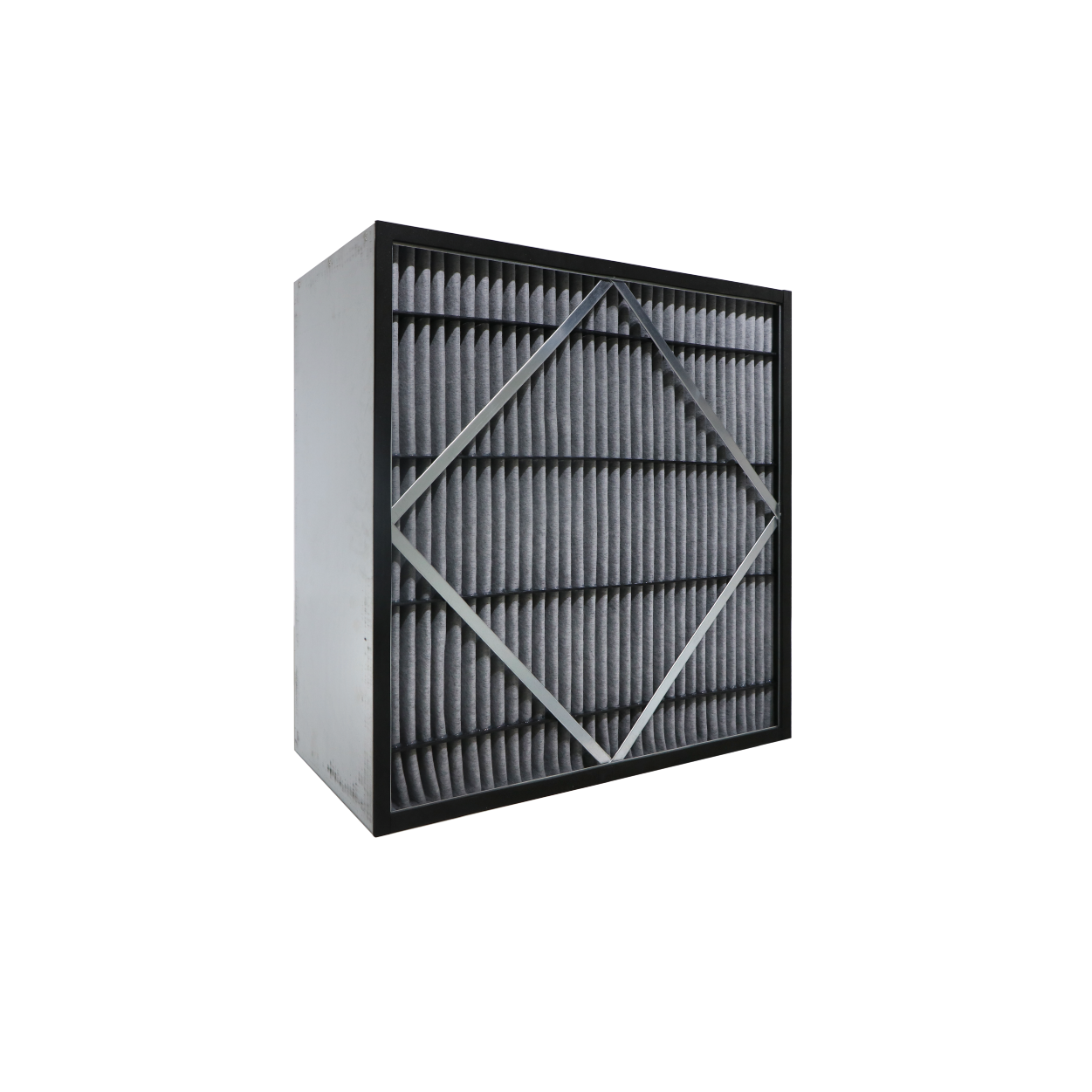

Chemical Filter
Can be used for gaseous contaminants and corrosions control. It is available in a wide range of sizes, depths and media capacities to offer relief from unpleasant odors including human bioeffluents, food preparation, waste products and more.

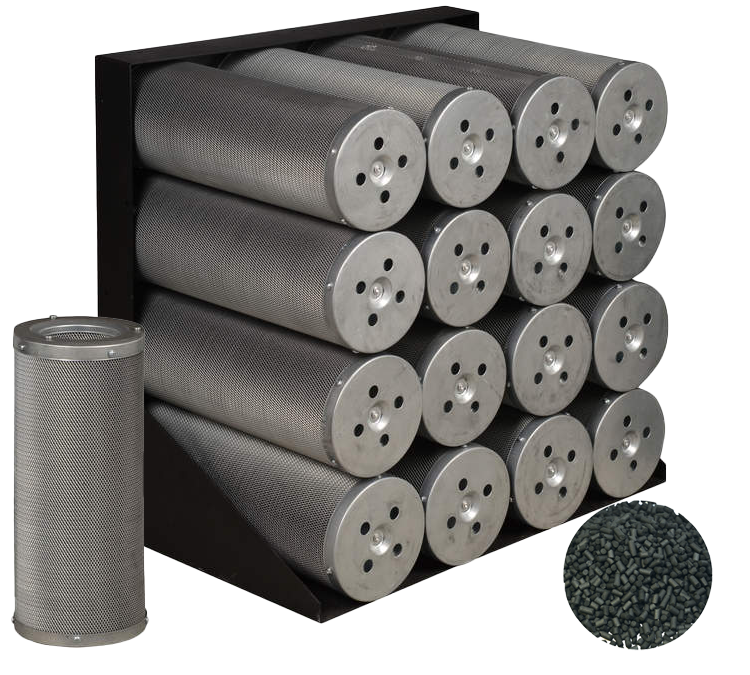

Chemical Cartridge Filters
Gas phase filters are a type of filter used to clean gas pollutants present in the air. These filters are used particularly in industrial gas purification systems, industrial kitchens, chemical processes and energy production

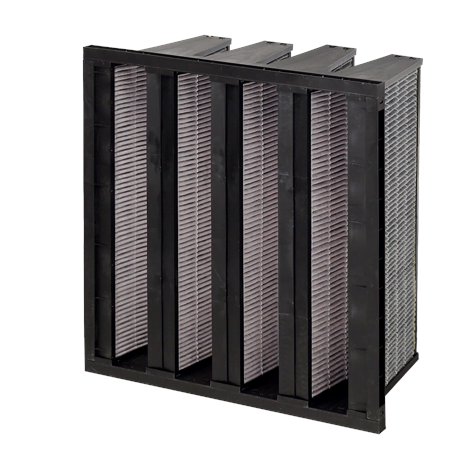

V-Bank Filter
A compact V-Bank filter with molecular media to remove gaseous contaminants in air handling units. It can be used in existing installations to remove low concentrations of most external and internal pollutants.

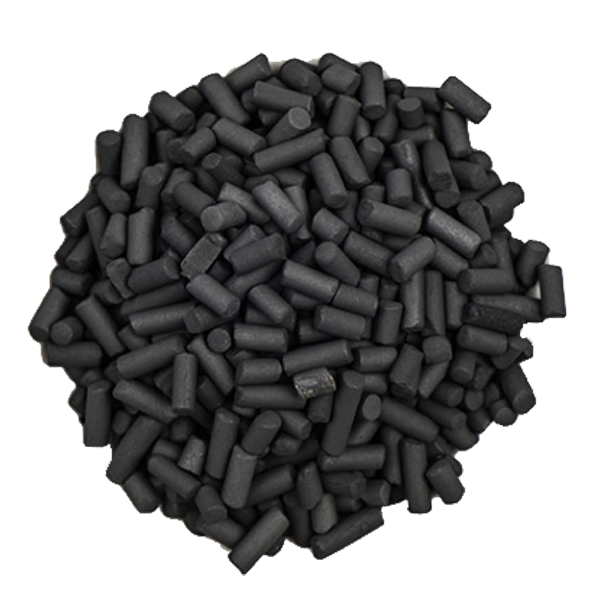

Modified Activated Carbon
PM 360 is a high-performance activated carbon specially designed for the removal of acidic gases such as hydrogen sulfide (H2S), sulfur dioxide (SO2) and hydrochloric acid (HCl).
PM760 is a high-performance activated carbon dedicatedto the removal of alkaline gases such as ammonia and ammonium. Based on coal activated carbon, its preparation process is a high activity patented impregnation method, and its high activity gives it excellent adsorption capacity.

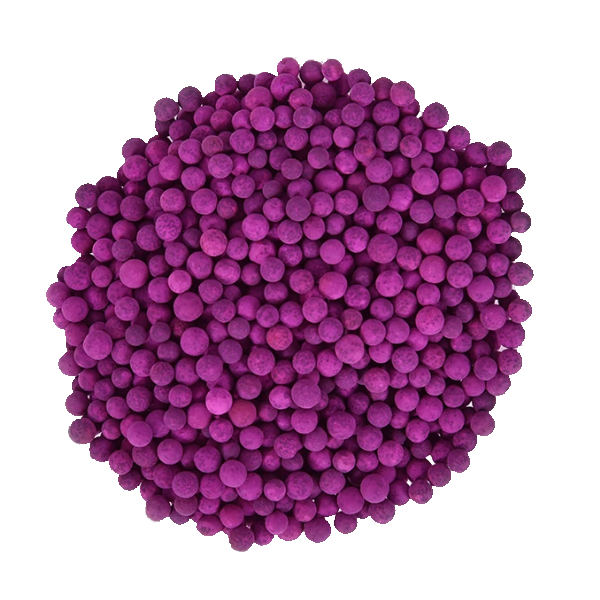

Activated Alumina Impreganted with Potassium Permanganate
PM108 filter media is aluminum oxide substances impregnated with 8% potassium permanganate.
Its ability to remove toxic, corrosive and odorous gases from the air is nearly doubled when compared to 4%
impregnation. Applications include oil refineries, steel mills, waste treatment plants, hospitals, museums, commercial buildings and laboratories.
PM108 is a spherical, porous substances made of activated alumina, potassium permanganate, water and unique
chemicals.
Blend Media
If there are many kinds of gases to be removed, it is necessary to mix many kinds of filter media to achieve better effect since the chemical filter media is more targeted.
